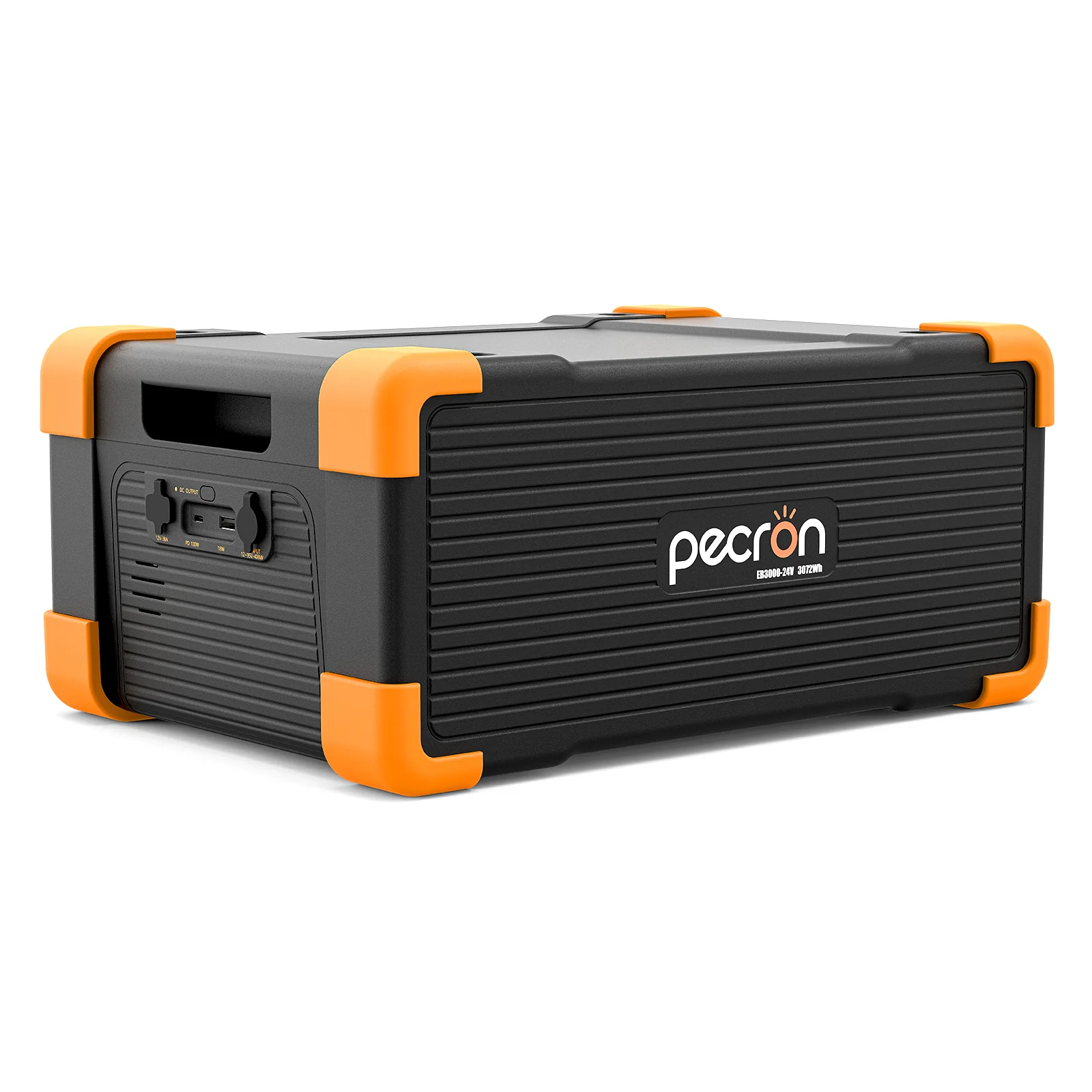

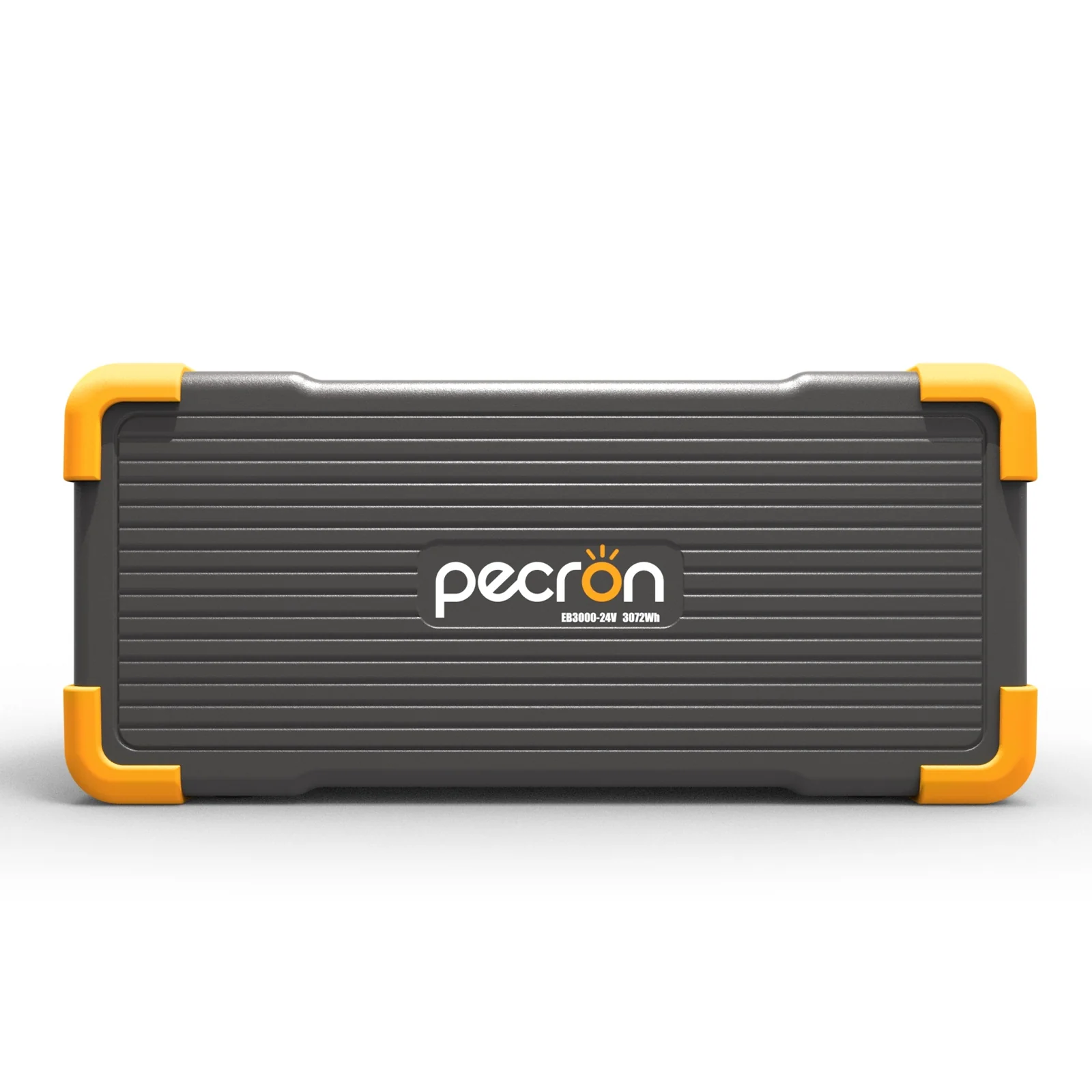

The EB3000-24V is an Expansion battery.

· GX16MF-5 Charging Port: PV(operating voltage) range 12V~95V, 400W maximum;

· EB3000-24V has a built-in MPPT charge controller, which supports 12V-95V(max 400W).

· EB3000 can be used as an alone DC output.

· Max 2pcs of EB3000-24V can be cascaded to E2000 LFP. Extended up to 8064Wh!

· Currently EB3000-24V can only be used to E2000 LFP.

· EB3000-24V utilizes high quality UL certified automotive LiFePO4 battery.

CASCADE FUNCTION:
Port for Cascade *2 (Cascade available for E2000LFP)

Specifications

• Capacity: 3072Wh （25.6V/120Ah）
• Battery Type: LiFePo4
• Input: AC Adapter charging /Solar charging / Car charging
• AC Adapter Input: 100Vac~120Vac  .Output：42V⎓15A
• Solar Input: Voc 12V~95V / 400W Max / 15A Max
• Car Input: DC 12V~95V-100W（Max）
• DC Output: 1x12V XT60 (30A Max) ; 1xUSB-C ; 1xUSB-A
• USB Output: 1 x 100W PD, 1 x 18W
• Battery Type: LiFePO4
• Weight: 57.3lbs(26KG)
• L441*W312*H200mm；L17.3xW12.2xH7.8in
• Charge Temperature: 0°C~45°C / 32°F-113°F
• Discharge Temperature: -20°C~45°C / -4°F-113°F

 Package list

· Pecron EB3000-24V *1
· Cable from XT60 to Cigar port and 5525 port *1
· MC4 port to 5-pin Solar Charging Cable(LSMC4-5GX16) *1
· M25 Cascade cable *1
· Solar Cable with 5521 Connector *1
· Anderson Solar Charging Cable *1
· Car charge cable with GX16MF-5 connector *1
· 12V Alligator Clips *1
